Studio Four

Balanced Proportions. Ideal for office or gym.

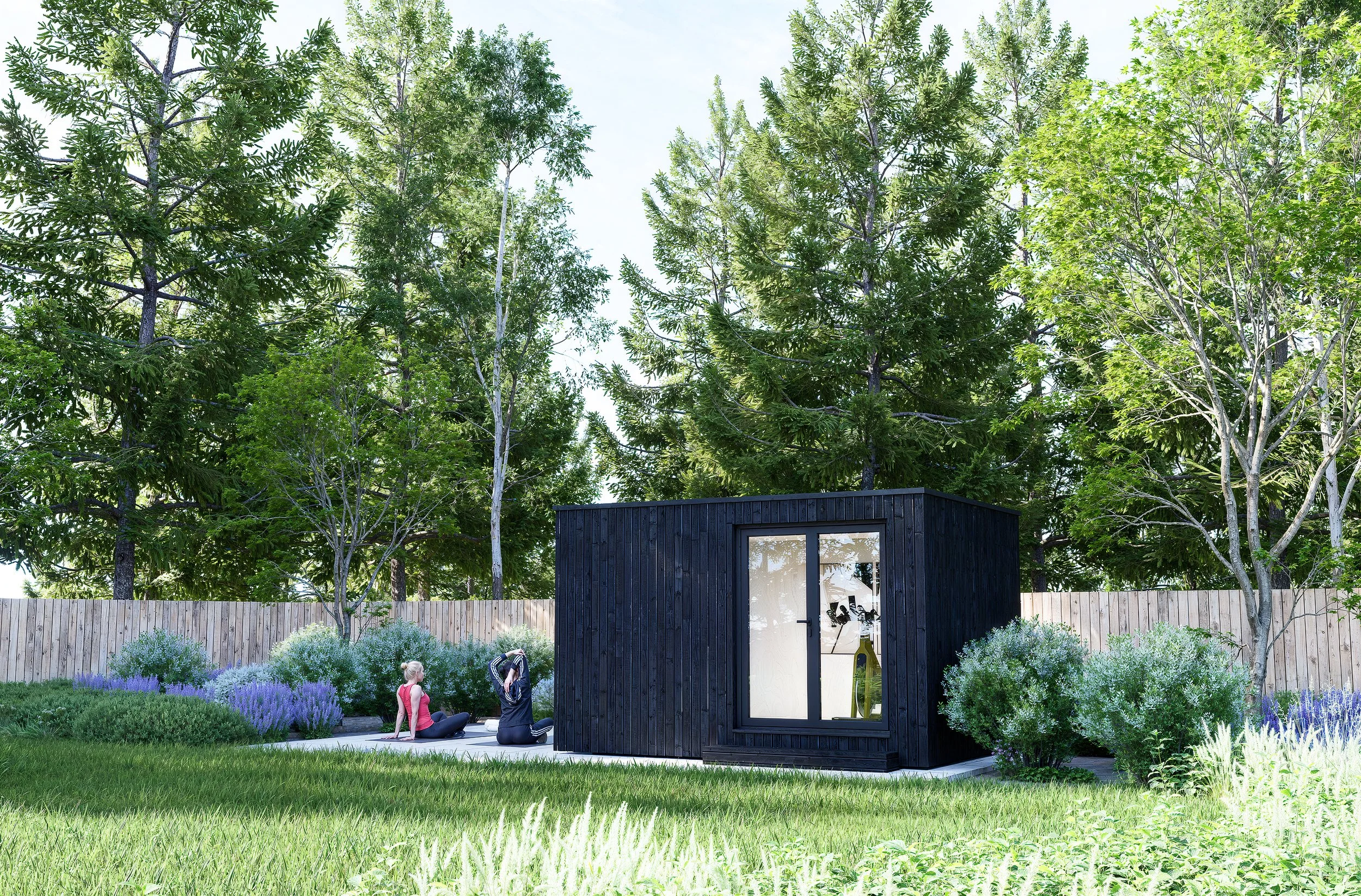

A complete design-intent pack for a 3 × 4m timber‑framed garden studio.

What’s Included

• Cover sheet with project overview

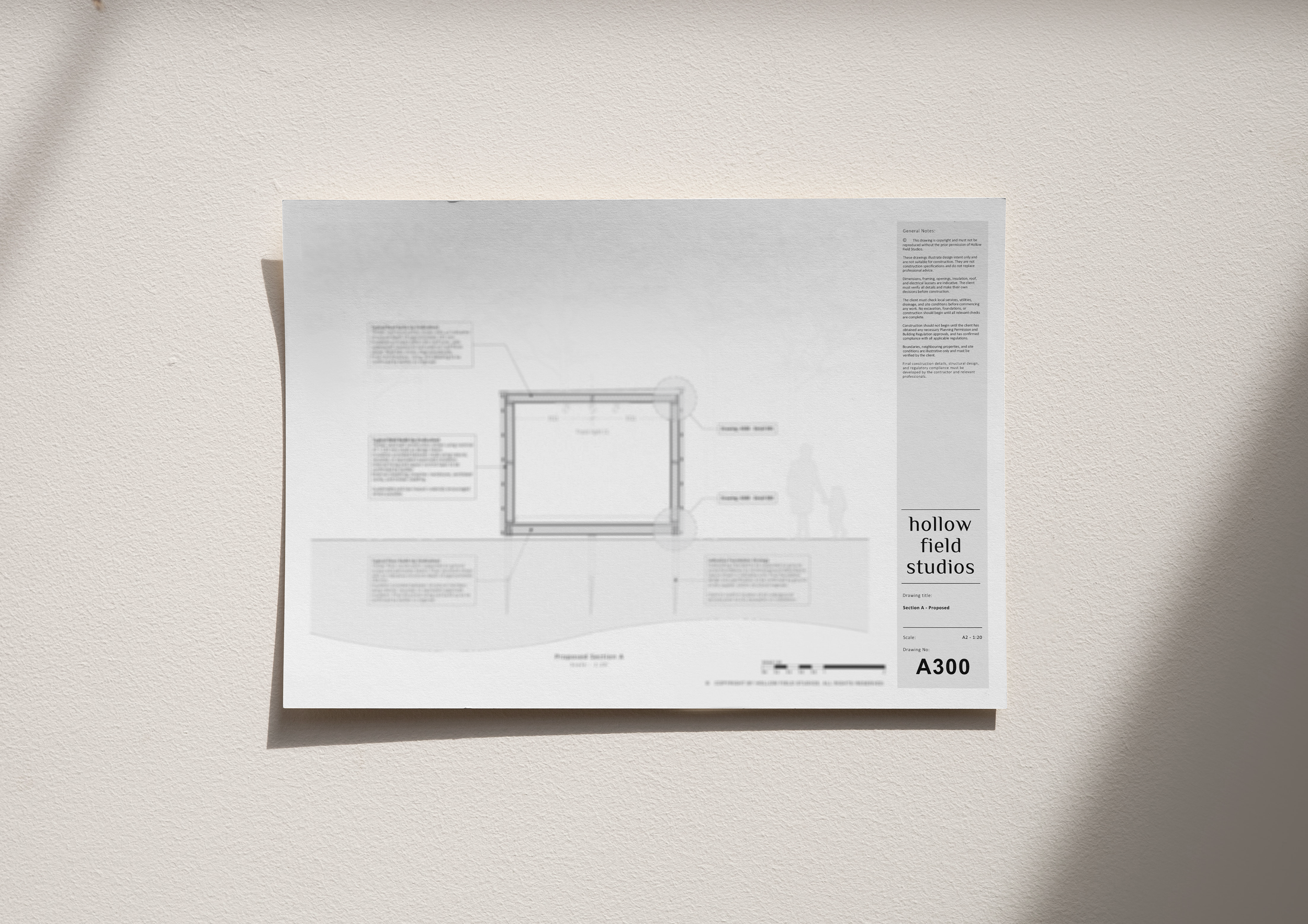

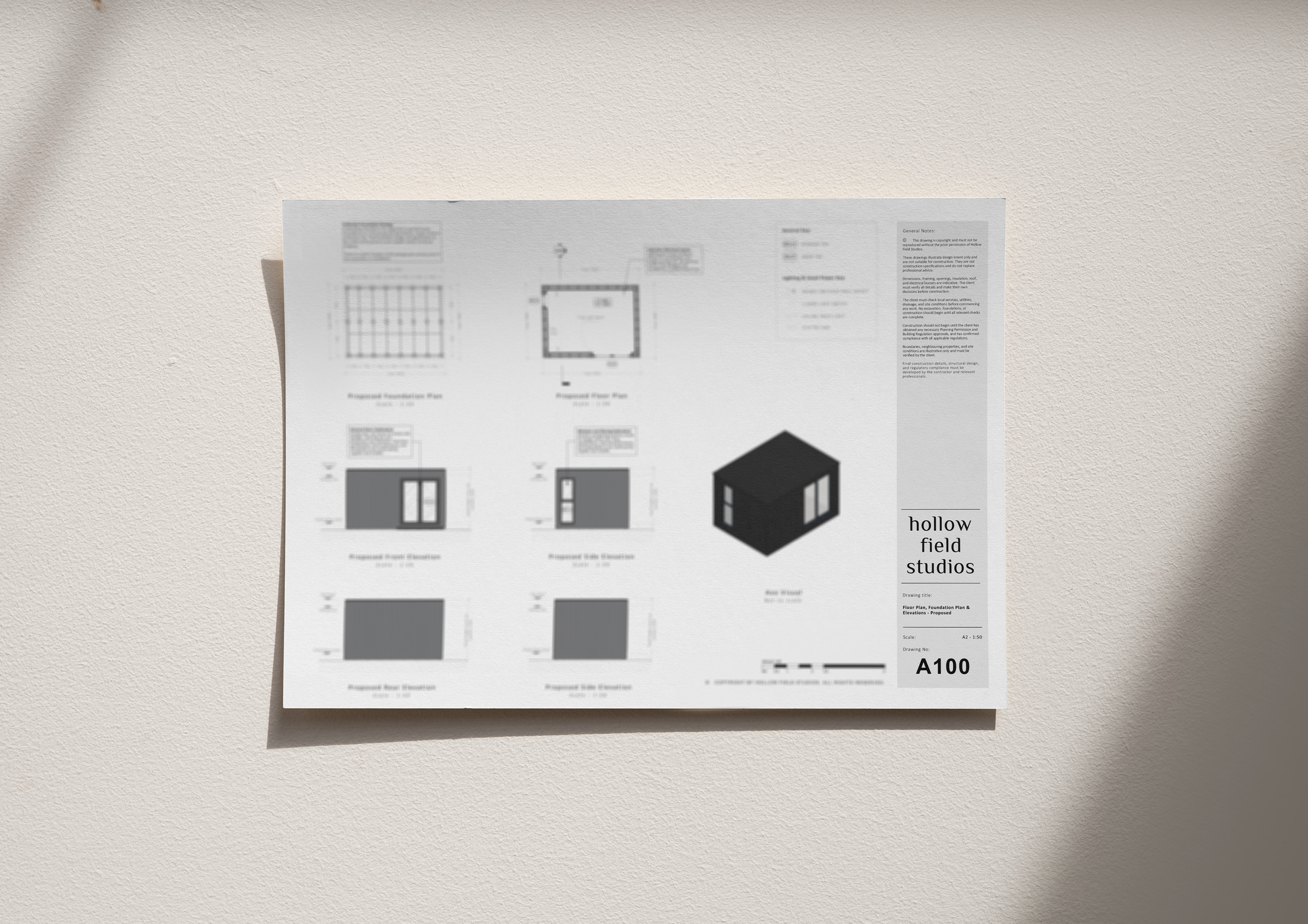

• Elevations and sections (indicative)

• Foundation plan & setting‑out information (indicative)

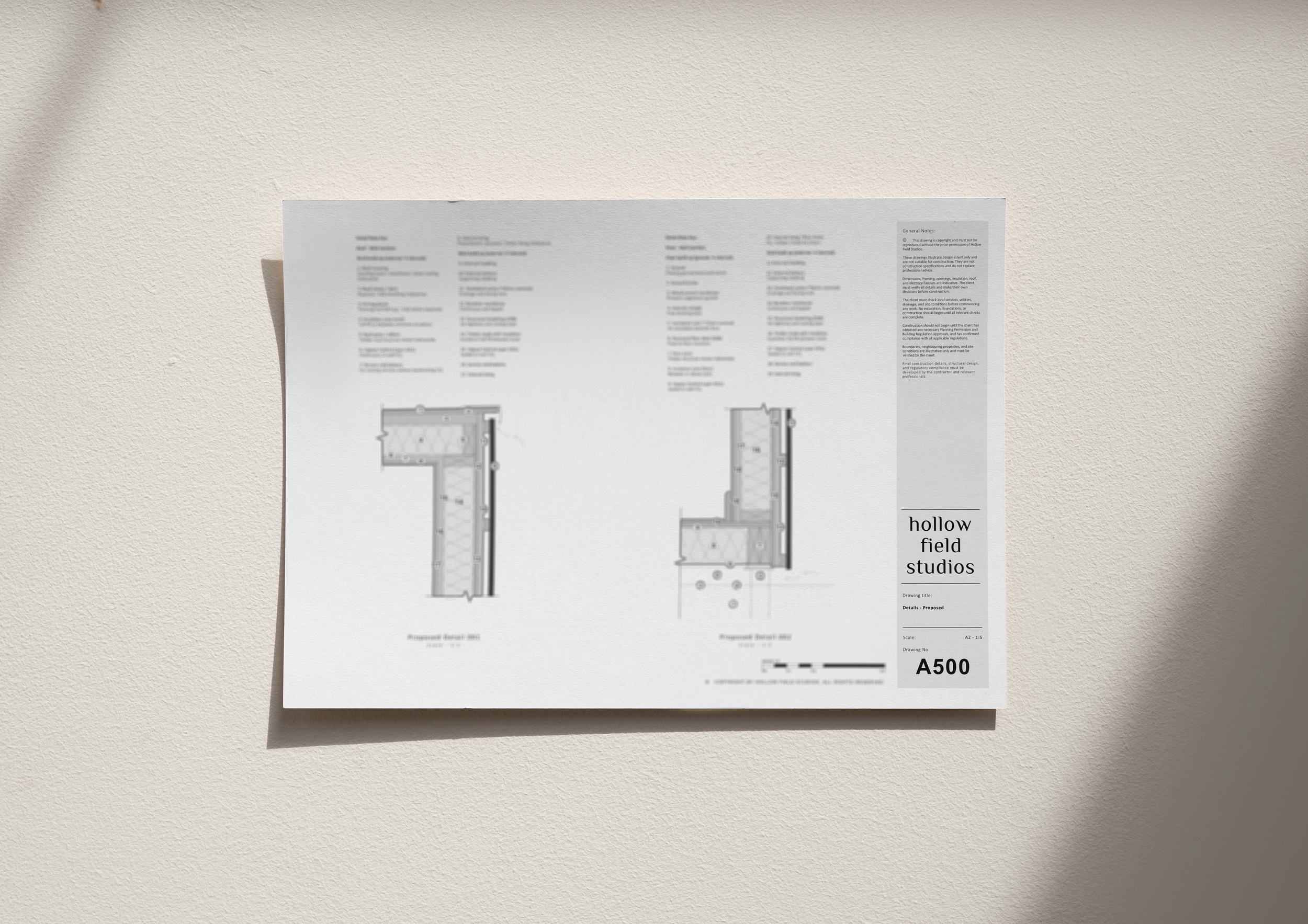

• Large‑scale construction details (indicative)

• Typical material build-ups and guidance (timber frame, insulation, cladding)

• Drawing notes

Key Notes

• All drawings are provided for design-intent purposes only.

• Final structural sizing, compliance, and construction must be reviewed by a qualified contractor or structural engineer.

• Studio Four is based on a sustainable timber frame with reversible foundation options.

• Dimensions are indicative; site-specific verification is required.

Dimensions / Key Info

• External footprint: 3m × 4m

• Internal height: approx. 2m

• Typical wall build‑up: 125 mm timber studs with insulation, VCL, service void, internal lining

• Roof build‑up: Insulation, VCL, service void, internal lining

• Foundation: Ground screws or other reversible systems

Delivery

Instant digital download (PDF pack).
